CPU

CPU

Support Baytrail-I/D/M serial CPU?(J1900 N2900 J1800 N2806)

CPU?package

BGA

Chipset

Support Baytrail-I/D/M serial CPU

BIOS

EFI BIOS

Ram

Technology Architecture

Single channel DDR3L?1066/1333MHz

capacity

Max support 8GB?Ram

Socket

DDR3 SODIMM 204 Socket

?

Video

Graphics controller

Intel HD Graphics

DP

DP support Max resolution 2560*1600

HDMI

HDMI?Max resolution?1920x1080

Dual display

HDMI+DP Synchronous or asynchronous display

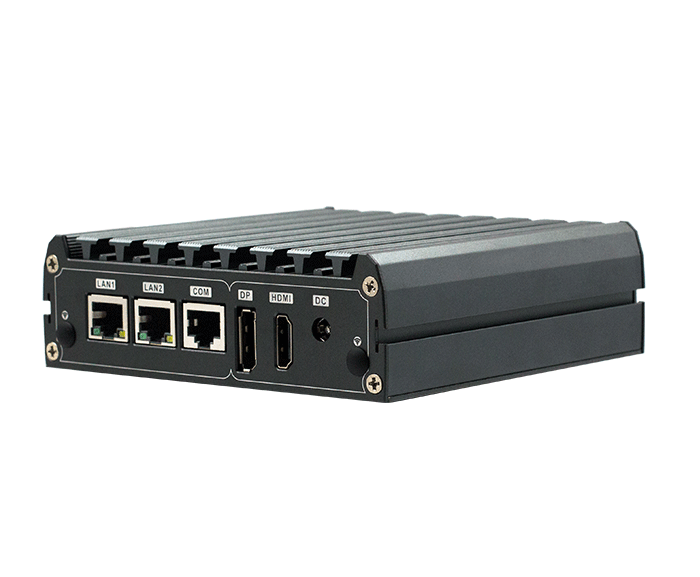

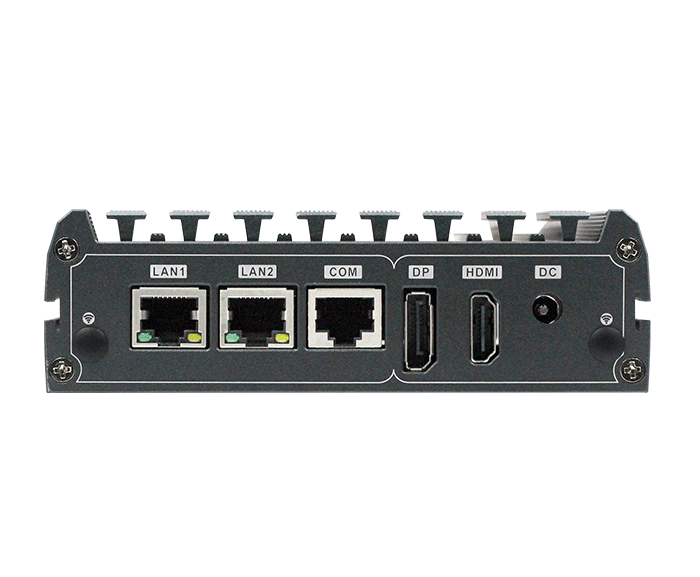

I/O?back panel

Ports

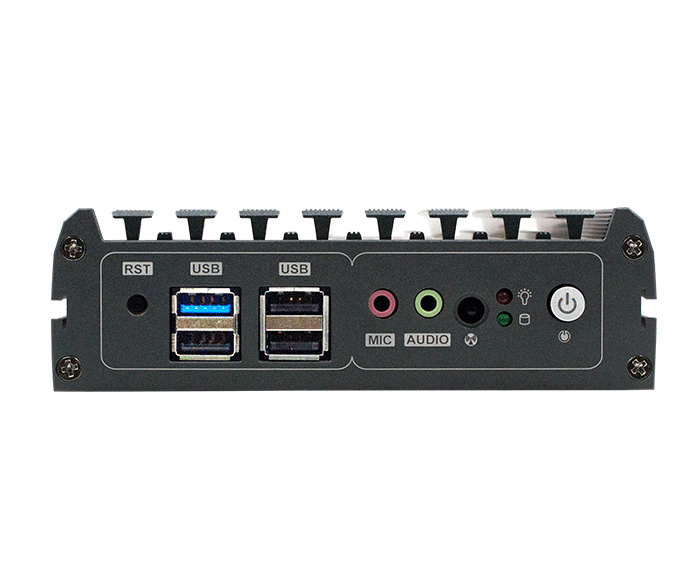

1*DP?1*HDMI 4*USB 2*LAN 1* quick start button with indicator light 1* restart button 1*Line_out 1*MIC 1* power indicator 1* hard disk indicator

Internet

Controller

2*Intel I211ATHigh-performance Gigabit LAN，RJ45?Port

?

Input/output interface

USB

3*USB2.0 1*USB3.0?Max support+5V/1A

Com

1*RJ45 Port RS-232

Infrared

1*IR Infrared receiving port

Audio

1*LINE OUT 1*MIC

Expansion bus

Mini-PCle

1*Mini-PCIe slot, only supports PCIE signaling devices

Storage

SATA

1*standard SATAII?Port, Maximum transfer rate 3Gb/s

M-SATA

1*Mini-PCIe M-SATA Scoket,Support SANDISK protocol, maximum transfer rate 3gb/s

EMMC

Support32/64/128G(optional）

POWER SUPPLY

Power Type

Wide Voltage 12-19V

Power consumption

20W

?

WORKING ENVIRONMENT

Working temperature

-20℃ ~ +60℃

Storage temperature

-40℃ ~ +85℃

Working humidity

0% ~ 90%(non-condensing)

Storage humidity

0% ~ 90%(non-condensing)

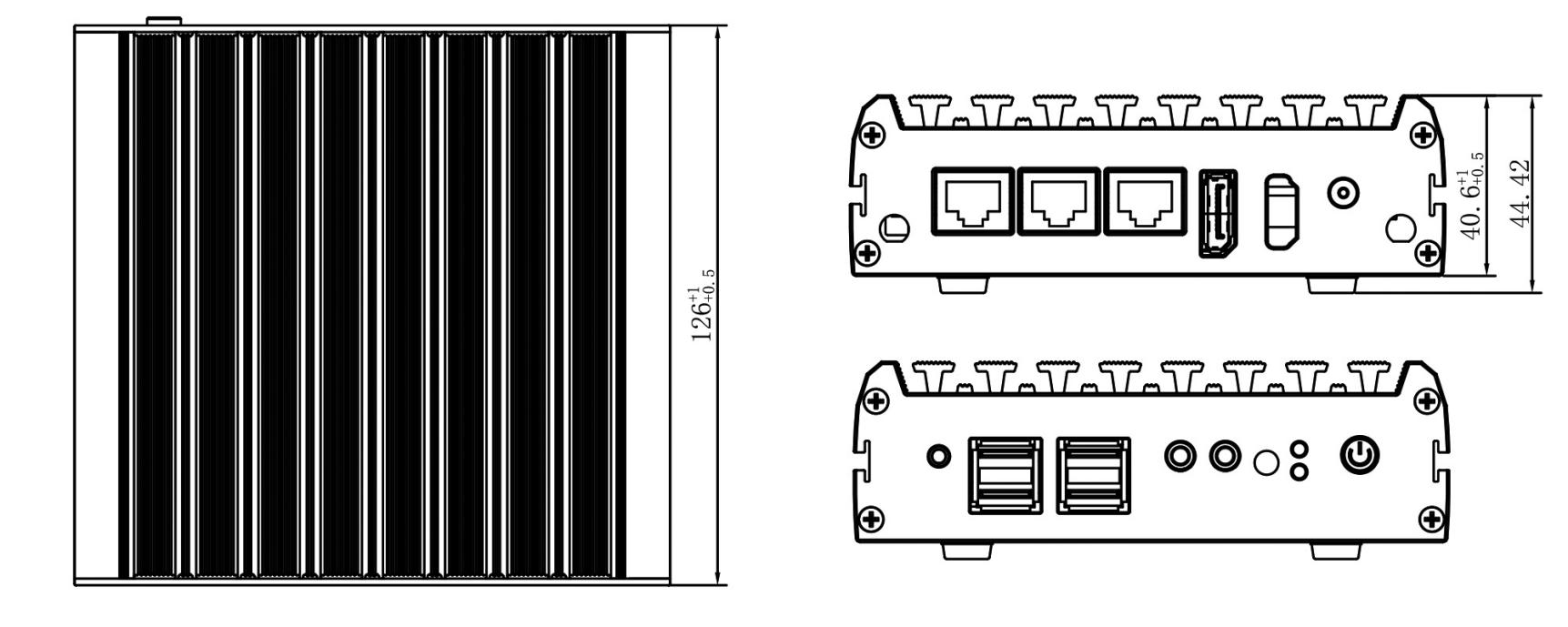

MEASURE

Size

134*126*40.6 mm

Weight

1.5KG

Certification

?

CE,ROSH,FCC
